Ceramic Lining Bricks
Application:
The lining brick is designed specially for the ball mill wear protection. Thanks to the extremely low wear loss and inter-locking system design, the life time of the lining can last longer compared with other material.
Performance Index:
|
Index |
92% |
95% |
|
Al2O3（%） |
≥92 |
≥95 |
|
Moh’s hardness |
9 |
9 |
|
Rate of Water Absorption（%） |
≤0.01 |
≤0.01 |
|
Bulk Density （g/cm3） |
≥3.63 |
≥3.68 |
|
Self-Wearing Loss(%-24 hours) |
≤0.010 |
≤0.10 |

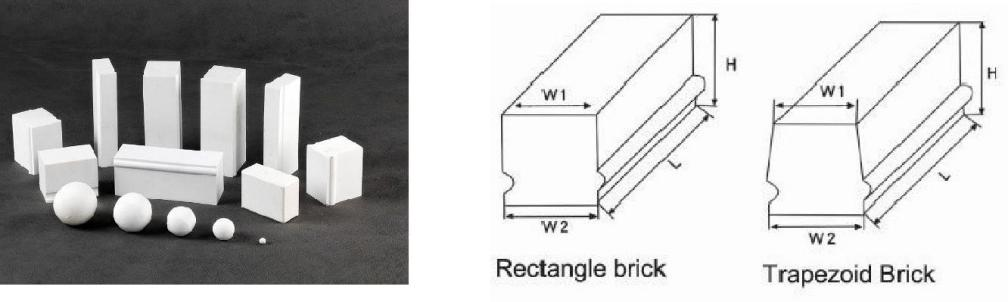

Specifications:
|
Name |
Length (mm) |
Width (mm)W 1 |
Width (mm) W2 |
Height (mm) |
|
|
Regular size (40-90mm) |
Rectangle brick |
150±2 |
50±1 |
50 |
40/50/60/70//77/90±1 |
|
Trapezoid Brick |
150±2 |
50±1 |
45±1 |
40/50/60/70//77/90±1 |
|
|
Half-Rectangle Brick |
75±1 |
50±1 |
50±1 |
40/50/60/70//77/90±1 |
|
|
Half-Trapezoid Brick |
75±1 |
50±1 |
45±1 |
40/50/60/70//77/90±1 |
|
|
Flake Brick |
150±2 |
25±1 |
22.5±1 |
40/50/60/70//77/90±1 |
|
Advantages：
High purity without contamination
Excellent wear resistance, longer service life.
Improve productivity due to less shutdown time for maintenance.
 |
