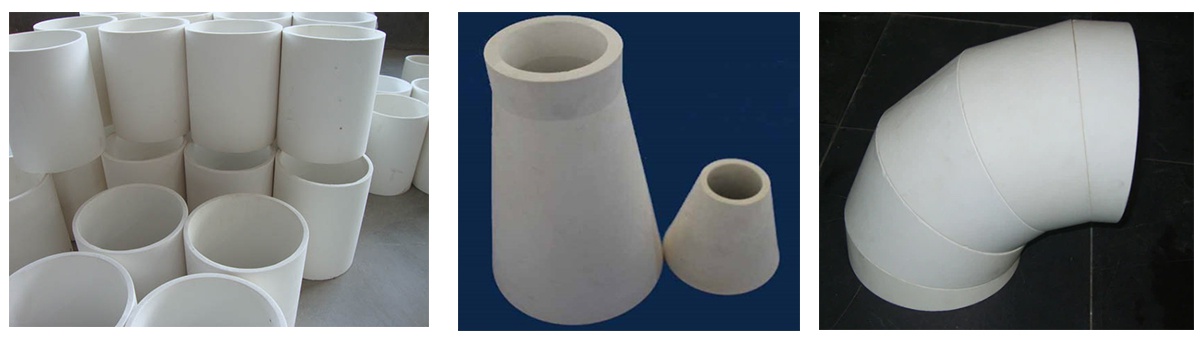

Alumina Ceramic Straight Tube
Application:
Traditionally, people install the high alumina ceramic tile into the pipe as abrasion resistant material, however, there are many joints between the tiles, and these joints are weak points, sometime the tiles break off under high impact resistance. The flow speed of the material would also be reduced due to the joints. And for the small diameter pipe, its not possible to install alumina ceramic tile, the alumina tube is a good option as the liner for small diameter pipe.
Technical Specification
|
Technical Index |
92% |
95% |
|
Al2O3 Content (%) |
≥92 |
≥95 |
|
Fe2O3 Content (%) |
≤0.2 |
≤0.15 |
|
Hardness (Mohs) |
9 |
9 |
|
Water Absorption (%) |
≤0.02 |
≤0.02 |
|
Density (g/cm3) |
≥3.60 |
≥3.65 |
Available Size
|
Specifications (mm) |
Outer Diameter (mm) |
Inner Diameter (mm) |
Thickness (mm) |
|
Φ25 |
Φ25 |
Φ10 |
7.5 |
|
Φ30 |
Φ30 |
Φ15 |
7.5 |
|
Φ40 |
Φ40 |
Φ20 |
10 |
|
Φ50 |
Φ50 |
Φ37 |
6.5 |
|
Φ65 |
Φ65 |
Φ52 |
6.5 |
|
Φ80 |
Φ80 |
Φ67 |
6.5 |
|
Φ100 |
Φ100 |
Φ84 |
8 |
|
Φ125 |
Φ125 |
Φ109 |
8 |
|
Φ150 |
Φ150 |
Φ134 |
8 |
|
Φ200 |
Φ200 |
Φ184 |
8 |
|
Φ250 |
Φ250 |
Φ230 |
10 |
|
Remark: the biggest OD is up to 500mm and the wall thickness is from 6mm up to 50mm. |
|||
Advantage:
(1) Excellent Hardness
(2) Excellent Abrasion Resistance
(3) Corrosive Resistance
(4) Convenient Connection
